ScanDP: Generalizable 3D Scanning with Diffusion Policy

Hirako, Itsuki; Hakoda, Ryo; Liu, Yubin; Hwang, Matthew; Sato, Yoshihiro; Oishi, Takeshi

ScanDP: Generalizable 3D Scanning with Diffusion Policy

Itsuki Hirako¹, Ryo Hakoda¹, Yubin Liu¹, Matthew Hwang¹,
Yoshihiro Sato², Takeshi Oishi¹

¹The University of Tokyo
²Kyoto University of Advanced Science

Abstract

Learning-based 3D Scanning plays a crucial role in enabling efficient and accurate scanning of target objects. However, recent reinforcement learning-based methods often require large-scale training data and still struggle to generalize to unseen object categories. In this work, we propose a data-efficient 3D scanning framework that uses Diffusion Policy to imitate human-like scanning strategies. To enhance robustness and generalization, we adopt the Occupancy Grid Mapping instead of direct point cloud processing, offering improved noise resilience and handling of diverse object geometries. We also introduce a hybrid approach combining a sphere-based space representation with a path optimization procedure that ensures path safety and scanning efficiency. This approach addresses limitations in conventional imitation learning, such as redundant or unpredictable behavior. We evaluate our method on diverse unseen objects in both shape and scale. Ours achieves higher coverage and shorter paths than baselines, while remaining robust to sensor noise. We further confirm practical feasibility and stable operation in real-world execution.

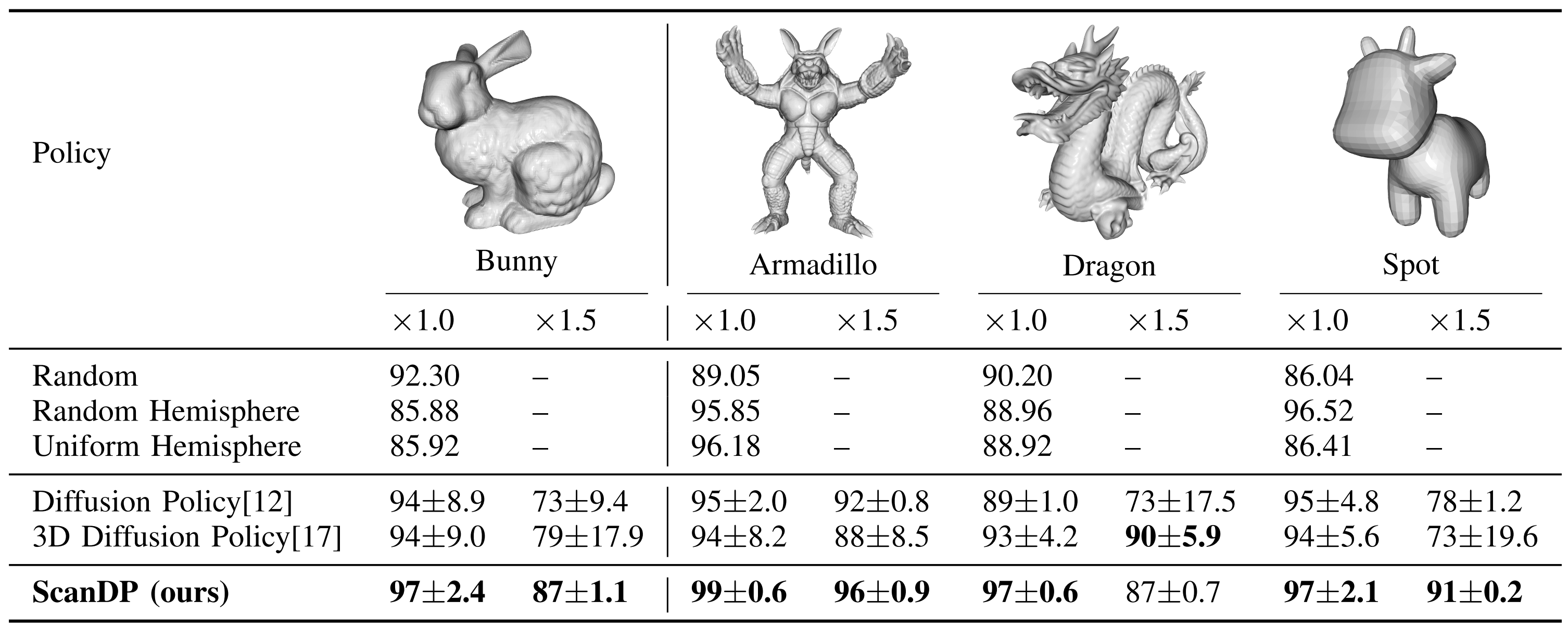

All policies are trained only on trajectories scanning the Stanford Bunny. Coverage is shown in mean $\pm$ std. We find that ScanDP consistently achieves the highest coverage while maintaining low variance.

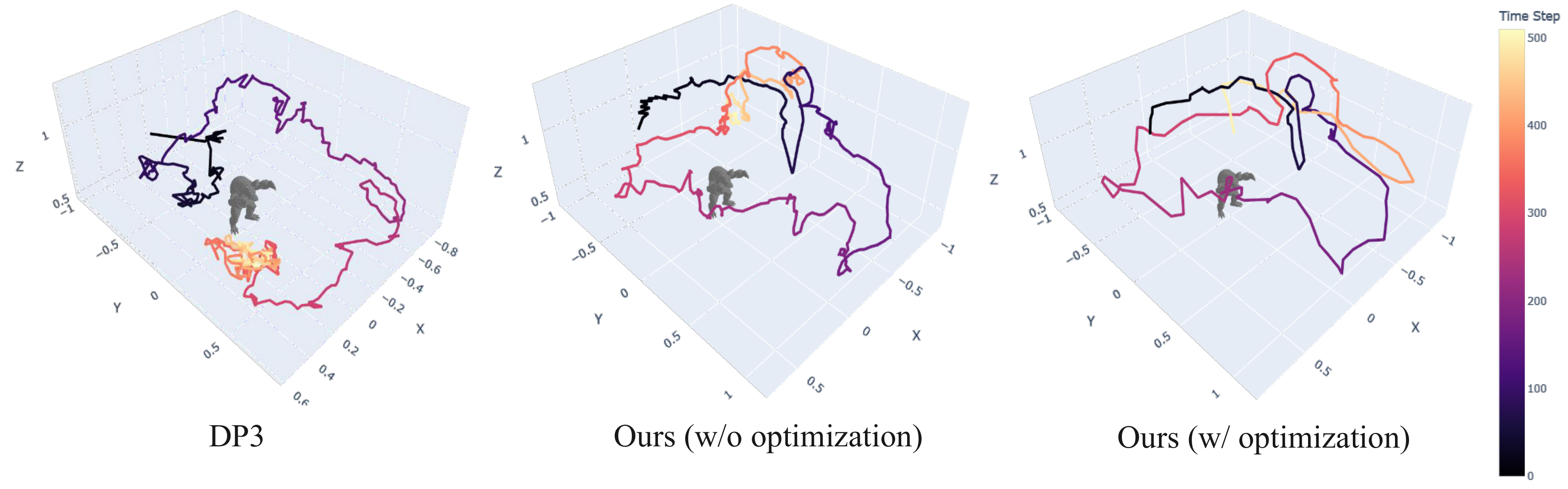

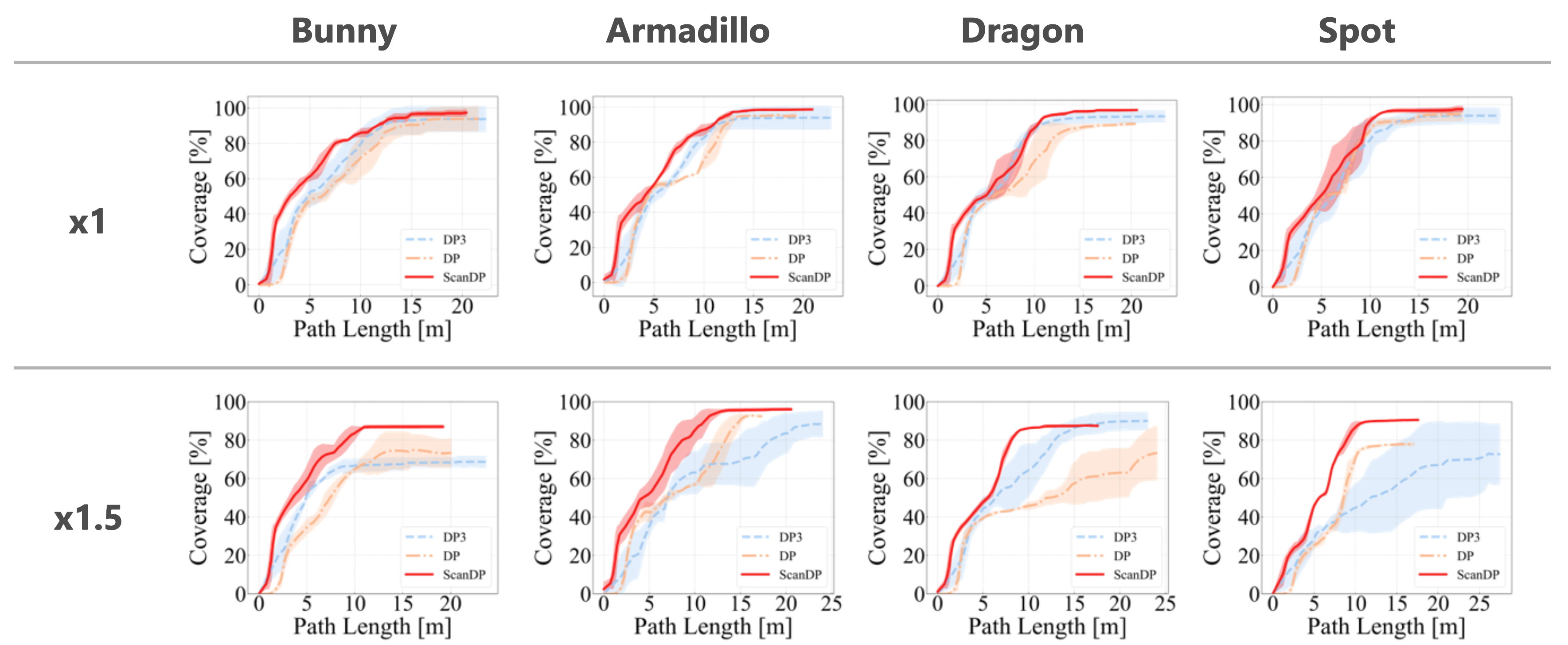

We show that our method achieves high coverage with a shorter travel distance. In contrast, DP3 and our method without path optimization include many redundant motions, leading to inefficiency and longer path lengths.

ScanDP with path optimization attains the shortest path length and smoothest movement. We find that DP3 tends to get stuck in a particular location when scanning objects not seen during training.

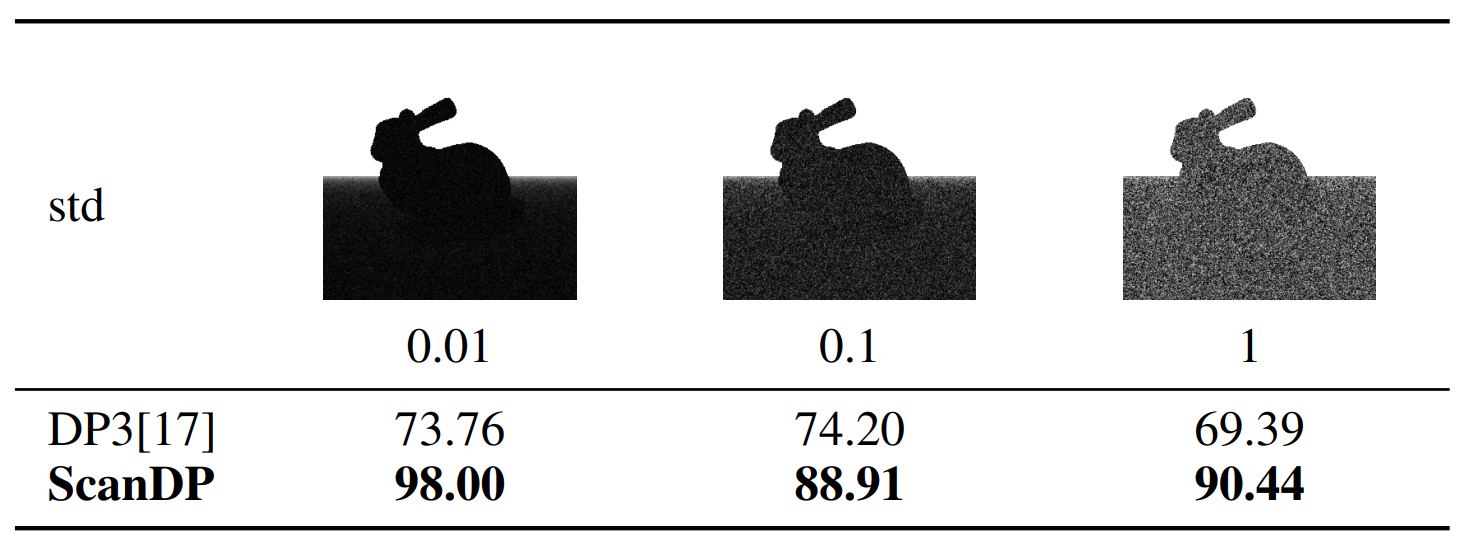

Coverage [%] under noisy inputs.

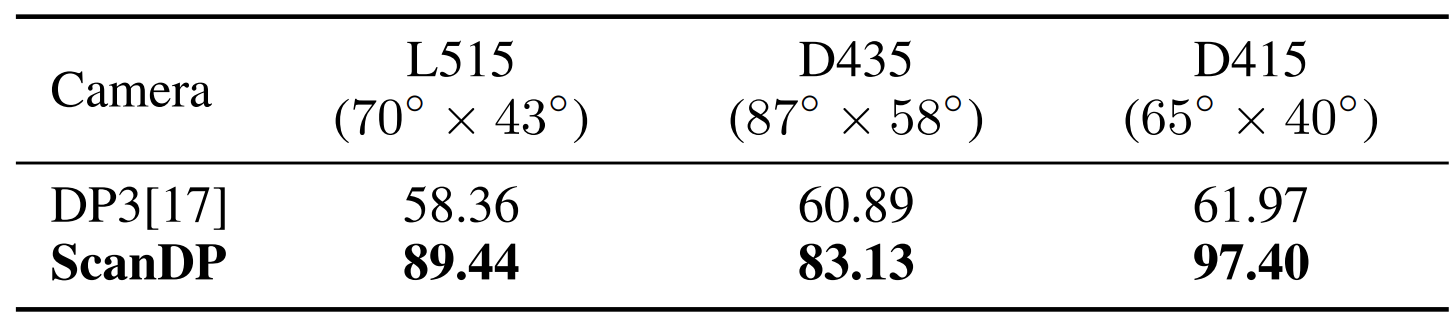

Coverage [%] under different FoV.

Method Overview

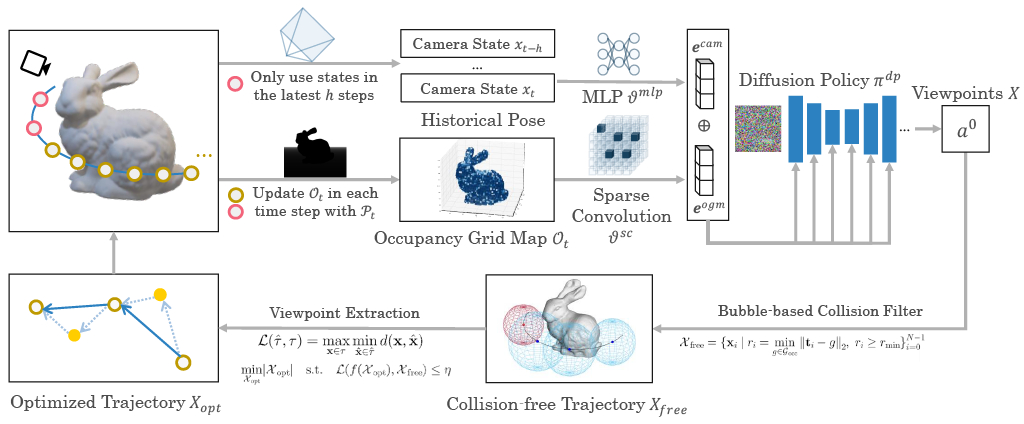

ScanDP consists of two main components: Path Generation (Upper part) and Path Optimization (Lower part). In the Path Generation phase, actions are generated from a diffusion policy conditioned on an occupancy grid map (OGM) and the current camera pose. In the Path Optimization phase, the generated actions are refined through a bubble-based collision filter and viewpoint extraction to optimize the scanning trajectory.

BibTeX


      @article{hirako2026scandp,
            title={ScanDP: Generalizable 3D Scanning with Diffusion Policy},
            author={Itsuki Hirako and Ryo Hakoda and Yubin Liu and Matthew Hwang and Yoshihiro Sato and Takeshi Oishi},
            year={2026},
            eprint={2603.10390},
            archivePrefix={arXiv},
            primaryClass={cs.RO},
            url={https://arxiv.org/abs/2603.10390},
      }
